When plastic parts fail, the failure is often caused by defective part design. Computer modeling of the part, followed by finite element analysis (FEA) of the design, will often reveal the defects in the part design.



For example, we were provided with a coffee cup that failed, causing serious burns.



A woman had purchased the cup of coffee at a fast food drive thru. While she was drinking the coffee, the lid came off and the cup collapsed in her hand, causing hot coffee to spill into her lap and resulting in serious burns.



Upon analyzing the cup, we noticed a piece missing from the rim. The rim was also deformed. When we compared the strength of many different coffee cups, we noticed that cups with flared rim designs were more prone to failure than cups without flared rims.



damaged plastic coffee cup

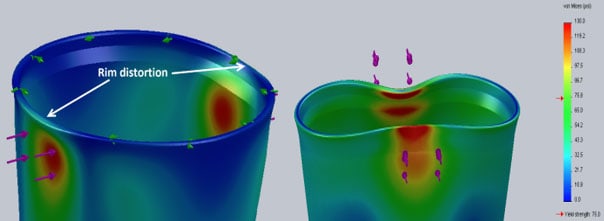

Next, we generated a computer model of the cup and performed an FEA analysis on the cup design.



plastic coffee cup rim distortion



Our results revealed that cups with flared rims are more prone to failure. The results of the computer modeling allowed us to visually demonstrate that cups with flared rims are inherently defective by design.



In the end, these findings allowed our attorney client to obtain a favorable settlement for the injured woman.
